Stihl TSA 230 Cordless Consaw - AP System

€659.00

Free Shipping Nationwide on all Orders over €80

Battery Option Body Only AP300s Battery & AL101 Charger

Product variants

Quantity

100% SECURE ONLINE SHOPPING GUARANTEED
We accept Visa, Mastercard, Debit & Credit Cards

FREE DELIVERY In Ireland ON ORDERS OVER €80
Quick Delivery With GLS Couriers

Call Or Email With Any Questions!
Amazing customer support

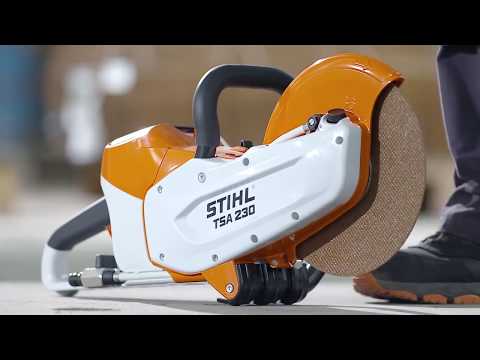

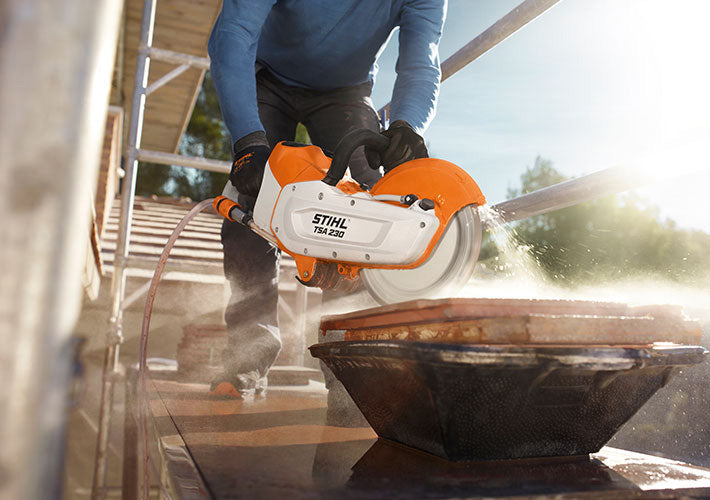

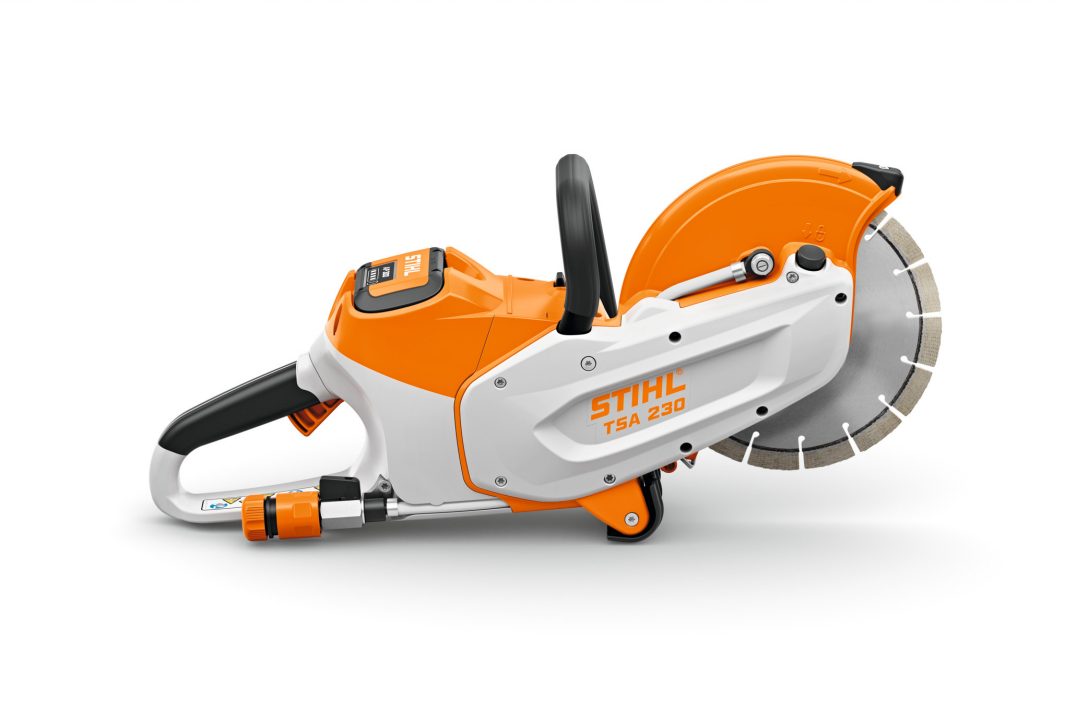

This 9” cordless cut off machine is part of STIHL's AP System. Cutting neatly and swiftly up to 70mm deep, the TSA 230 is ideal for cutting roofing tiles, bricks, metal and paving blocks. It is particularly light at only 3.9 kg (without battery). Emission-free cordless technology benefits both the operator and environment whilst allowing the tool to be operated indoors and outdoors. The water connection and vacuum accessories ensure effective dust control when cutting. Supplied with an abrasive wheel for cutting steel.

Powerful cordless cut-off machine with 230 mm cutting wheel

Individual tool without battery and without charger

For use in building construction and civil engineering, as well as in the home and garden

Energy-efficient, low-maintenance engine

Straightforward cutting wheel replacement

For 230 mm cutting wheels

Share
Tweet
Pin it

View full details

TECHNICAL DETAILS

Cordless technology	36V Lithium-Ion
Recommended battery	AP 300
Working time with AP 200 battery	up to 14 min ¹⁾
Working time with AP 300 battery	up to 18 min ¹⁾
Maximum cutting depth	70 mm
Rated voltage	36 V
Cutting wheel	230/9 mm/in
Weight	3.9 kg ²⁾
Vibration levels left/right	3.5/3.5 m/s2 ³⁾
Sound pressure level	103 dB(A) ⁴⁾
Sound power level	114 dB(A) ⁴⁾
Vibration value, left	3.5 m/s2
Vibration value, right	3.5 m/s2
Weight	3.9 kg
Sound power level	114 dB(A)
Total length	55 cm
Cutting wheel diameter	230 mm
Max. cutting depth	70 mm
Recommended battery	AP 300 S
Working time with AP 300 S battery	up to 22 min ¹⁾
Cordless power system	AP System
Protection type EN 60 529	IP 20

Features

Standard features

Low-maintenance motor technology
The EC motor with maintenance-free belt drive and enclosed control unit is very durable and low maintenance.
Magnesium guard
The cutting wheel guard is made from a light and durable die cast aluminium.
Ergonomic handle
The ergonomic wrap around handle allows for a more comfortable and precise use in a variety of positions.
Spindle lock mechanism
Cutting wheels can be changed quickly and easily.
STIHL electric motor (EC)
The STIHL electric motor (EC) is extremely energy efficient, lightweight and compact. It runs quietly, generates very low vibrations and does not require servicing.
Hose attachment
Water is supplied to the cutting wheel through the standard water connection with sprinkler system to suppress the dust produced during cutting. It is supplied to the device in such a way so as not to interfere with your work.
Coasting brake
Electronic coasting brake brings the blade to a quick stop. No free wheeling.
